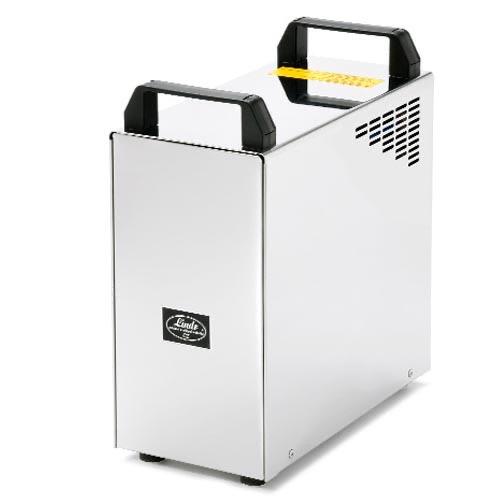

Lindr External Water Carbonator 40L / Sparkling Water Maker

Lindr External Water Carbonator 40L will produce 40 litres of carbonated/sparkling water per hour.

Ideal for restaurants, hotels or bars where large amounts of carbonated/sparkling water are required. This unit is the carbonation device only, the carbonated water is usually then cooled via a separate cooler such as the Lindr AS-40 or AS-80.

Can also carbonate cocktail kegs - we have a reference customer using a number of these units to carbonate cocktail kegs - chat to us to find out more.

This unit requires plumbing into the mains water supply - it also requires a water filter, filter head, pressure reducer and CO2 regulator - these are available as a kit.

Connects to any external font or tap with the appropriate fittings - Lindr, Celli, Porta etc. Chat to us about your requirement.

PLEASE NOTE: This item is special order only, delivery time 2-4 weeks from the factory. Please chat to us for an estimated delivery date.

Typical Installation Diagram:

1. Mains drinking water inlet
2. Aqua Stop (recommended)
3. Water Filter (see kit)
4. Water Pressure reducer
5. CO2 Pressure Regulator
6. CO2 canister
7. Cooler (eg Lindr AS-200)
8. Water Out - External Soda
9. On/Off switch - External Soda

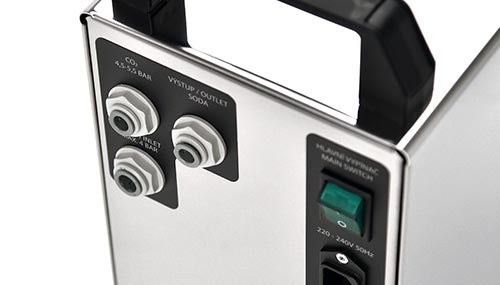

10. CO2 Inlet (5/16")
11. Water inlet (3/8")

The Lindr AS-40 or 80 would be an ideal cooler for this product, but it can connect to any existing high capacity cooler.

PRODUCT FEATURES AND TECHNICAL SPECIFICATION:
